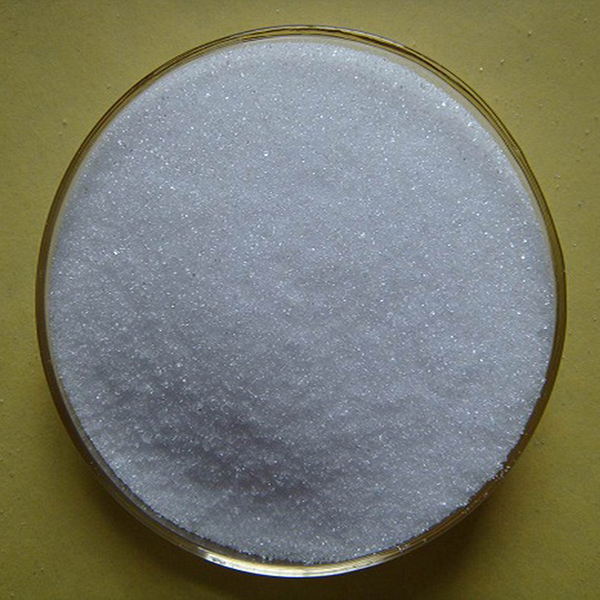

Sulfamic acid, also known as amidosulfonic acid, amidosulfuric acid, aminosulfonic acid, and sulfamidic acid, is a molecular compound with the formula H3NSO3. This colorless, water-soluble compound finds many applications. Sulfamic acid melts at 205 °C before decomposing at higher temperatures to water, sulfur trioxide, sulfur dioxide and nitrogen.
Sulfamic acid (H3NSO3) may be considered an intermediate compound between sulfuric acid (H2SO4), and sulfamide (H4N2SO2), effectively replacing a hydroxyl (–OH) group with an amine (–NH2) group at each step. This pattern can extend no further in either direction without breaking down the sulfonyl (–SO2–) moiety. Sulfamates are derivatives of sulfamic acid.
Production
Sulfamic acid is produced industrially by treating urea with a mixture of sulfur trioxide and sulfuric acid (or oleum). The conversion is conducted in two stages:
OC(NH2)2 + SO3 → OC(NH2)(NHSO3H)
OC(NH2)(NHSO3H) + H2SO4 → CO2 + 2 H3NSO3
In this way, approximately 96,000 tonnes were produced in 1995.
Structure and reactivity

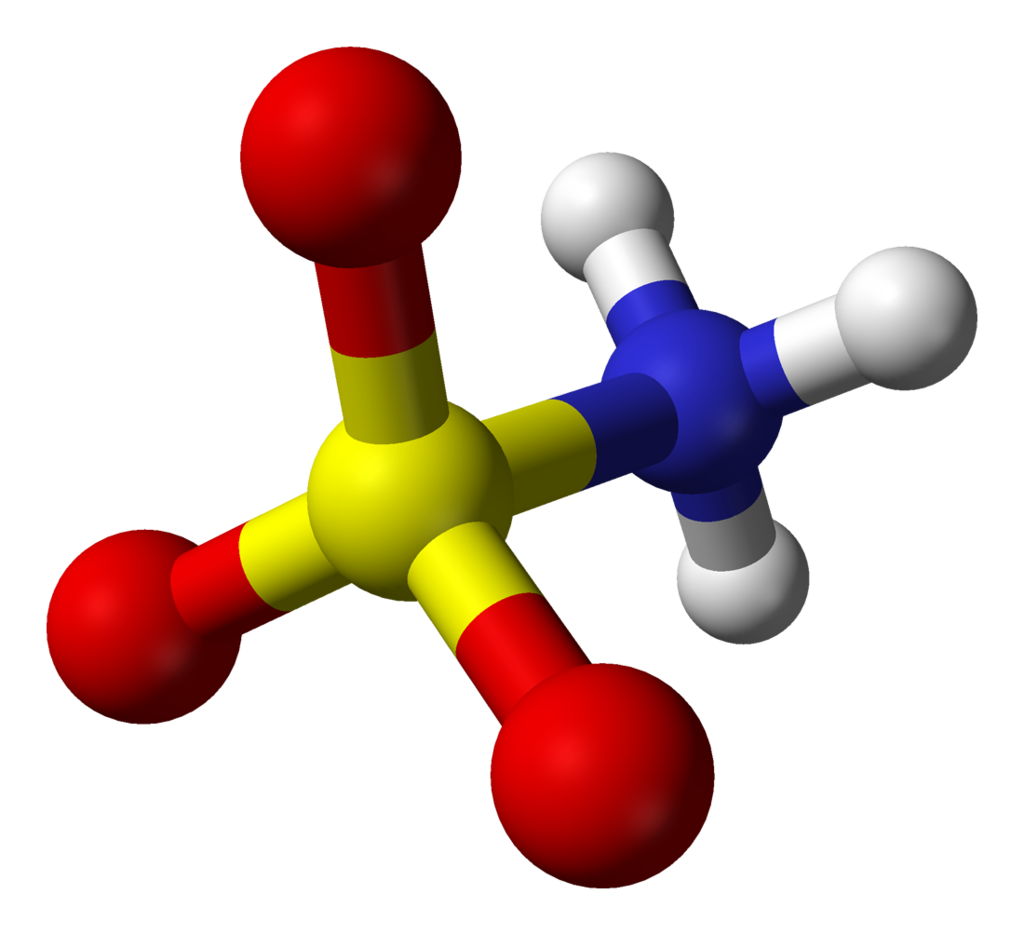

The compound is well described by the formula H3NSO3, not the tautomer H2NSO2(OH). The relevant bond distances are 1.44 Å for the S=O and 1.77 Å for the S–N. The greater length of the S–N is consistent with a single bond.[5] Furthermore, a neutron diffraction study located the hydrogen atoms, all three of which are 1.03 Å distant from the nitrogen.[4] In the solid state, the molecule of sulfamic acid is well described by a zwitterionic form.
Aqueous solutions of sulfamic acid are unstable and slowly hydrolyze to ammonium bisulfate, but the crystalline solid is indefinitely stable under ordinary storage conditions. Its behavior resembles that of urea, (H2N)2CO. Both feature amino groups linked to electron-withdrawing centers that can participate in delocalized bonding. Both liberate ammonia upon heating in water.
Acid–base reactions
ulfamic acid is a moderately strong acid, Ka = 0.101 (pKa = 0.995). Because the solid is not hygroscopic, it is used as a standard in acidimetry (quantitative assays of acid content).
H3NSO3 + NaOH → NaH2NSO3 + H2O
Double deprotonation can be effected in ammonia solution to give the anion HNSO3
H3NSO3 + 2 NH3 → HNSO2 + 2 NH4
Reaction with nitric and nitrous acids
With nitrous acid, sulfamic acid reacts to give nitrogen:
HNO2 + H3NSO3 → H2SO4 + N2 + H2O
while with nitric acid, it affords nitrous oxide:[7]
HNO3 + H3NSO3 → H2SO4 + N2O + H2O
Reaction with hypochlorite
The reaction of excess hypochlorite ions with sulfamic acid or a sulfamate salt gives rise reversibly to both N-chlorosulfamate and N,N-dichlorosulfamate ions.
HClO + H2NSO3H → ClNHSO3H + H2O
HClO + ClNHSO3H ⇌ Cl2NSO3H + H2O
Consequently, sulfamic acid is used as hypochlorite scavenger in the oxidation of aldehydes with chlorite such as the Pinnick oxidation.
Reaction with alcohol
Upon heating sulfamic acid will react with alcohols to form the corresponding organosulfates. It is more expensive than other reagents for doing this, such as chlorosulfonic acid or oleum, but is also significantly milder and will not sulfonate aromatic rings. Products are produced as their ammonium salts. Such reactions can be catalyzed by the presence of urea.
ROH + H2NSO3H → ROS(O)2O− + NH4
Applications
Sulfamic acid is mainly a precursor to sweet-tasting compounds. Reaction with cyclohexylamine followed by addition of NaOH gives C6H11NHSO3Na, sodium cyclamate. Related compounds are also sweeteners, such as acesulfame potassium.
Sulfamates have been used in the design of many types of therapeutic agents such as antibiotics, nucleoside/nucleotide human immunodeficiency virus (HIV) reverse transcriptase inhibitors, HIV protease inhibitors (PIs), anticancer drugs (steroid sulfatase and carbonic anhydrase inhibitors), antiepileptic drugs, and weight loss drugs.[11]
Cleaning agent
Sulfamic acid is used as an acidic cleaning agent, sometimes pure or as a component of proprietary mixtures, typically for metals and ceramics. It is frequently used for removing rust and limescale, replacing the more volatile and irritating hydrochloric acid, which is cheaper. It is often a component of household descaling agents, for example, Lime-A-Way Thick Gel contains up to 8% sulfamic acid and has pH 2.0–2.2, or detergents used for removal of limescale. When compared to most of the common strong mineral acids, sulfamic acid has desirable water descaling properties, low volatility, and low toxicity. It forms water-soluble salts of calcium and ferric iron.
Sulfamic acid is preferable to hydrochloric acid in household use, due to its intrinsic safety. If erroneously mixed with hypochlorite based products such as bleach, it does not form chlorine gas, whereas the most common acids would; the reaction (neutralization) with ammonia, produces a salt, as depicted in the section above.
It also finds applications in the industrial cleaning of dairy and brewhouse equipment. Although it is considered less corrosive than hydrochloric acid, corrosion inhibitors are often added to the commercial cleansers of which it is a component. It can be used for descaling home coffee and espresso machines and in denture cleaners.
Other uses
●Catalyst for esterification process
●Dye and pigment manufacturing
●Herbicide
●Coagulator for urea-formaldehyde resins
●Ingredient in fire extinguishing media. Sulfamic acid is the main raw material for ammonium sulfamate
●which is a widely used herbicide and fire retardant material for household products.
●Pulp and paper industry as a chloride stabilizer
●Synthesis of nitrous oxide by reaction with nitric acid
●The deprotonated form (sulfamate) is a common counterion for nickel(II) in electroplating.
●Used to separate nitrite ions from mixture of nitrite and nitrate ions( NO3-+ NO2-) during qualitative
●analysis of nitrate by Brown Ring test.
